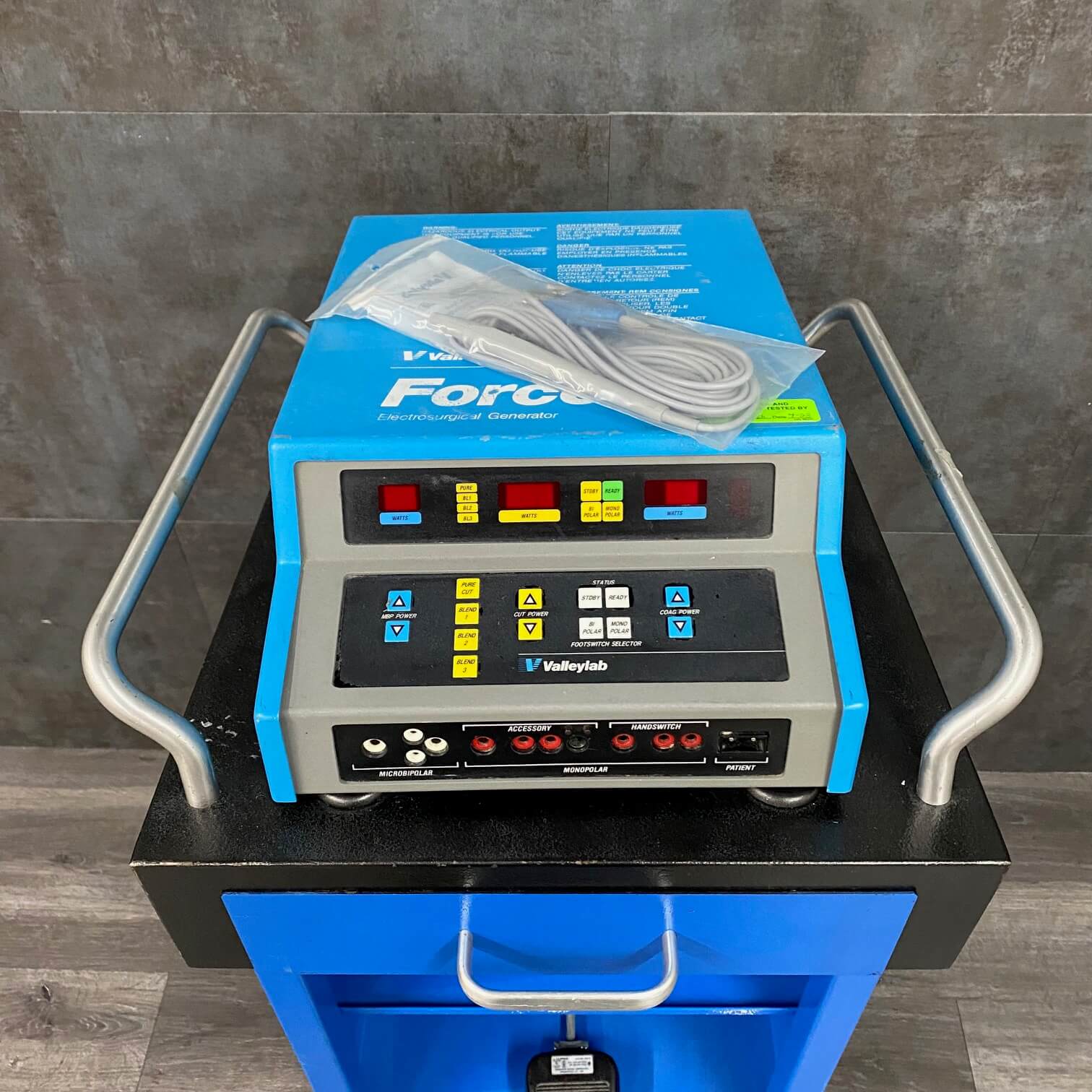

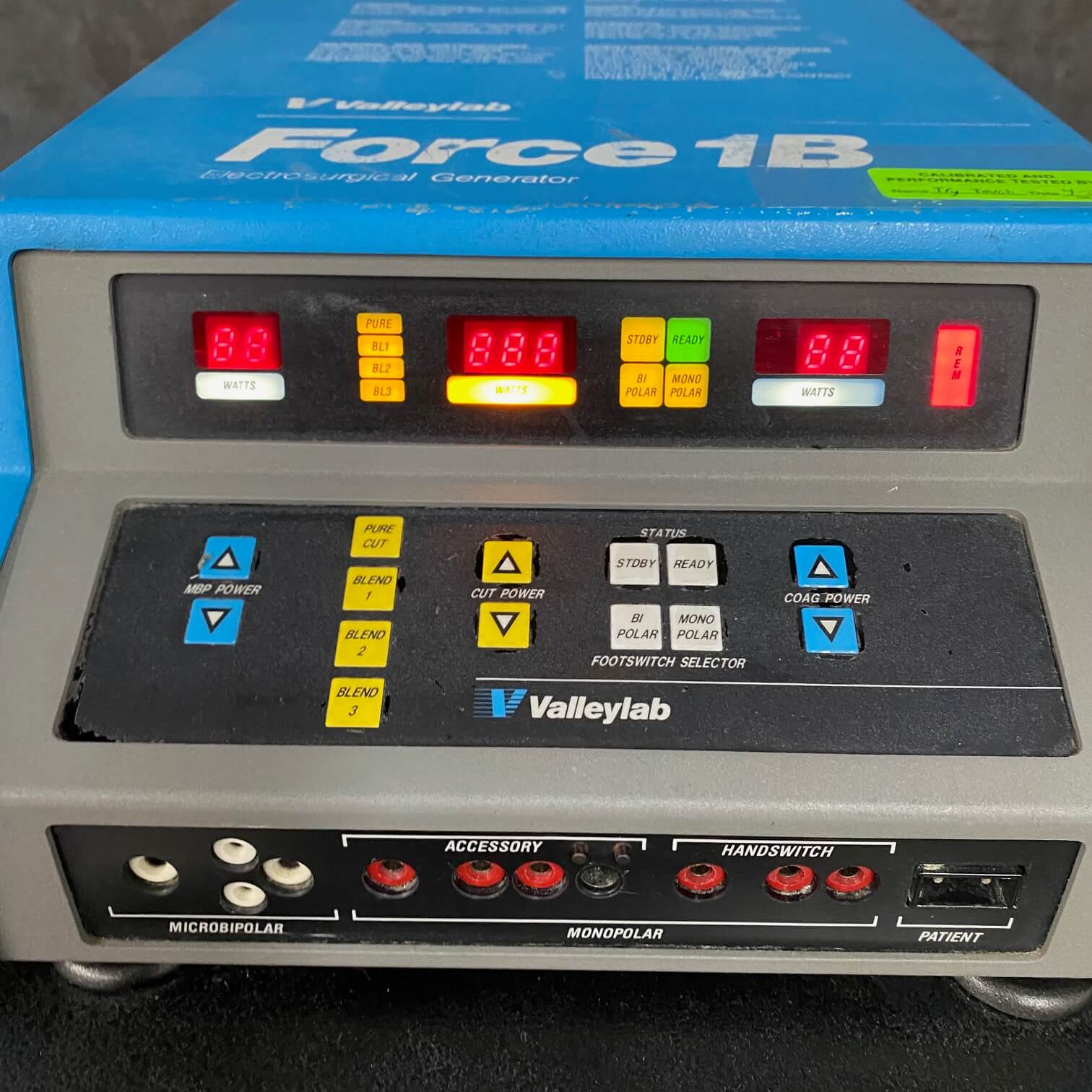

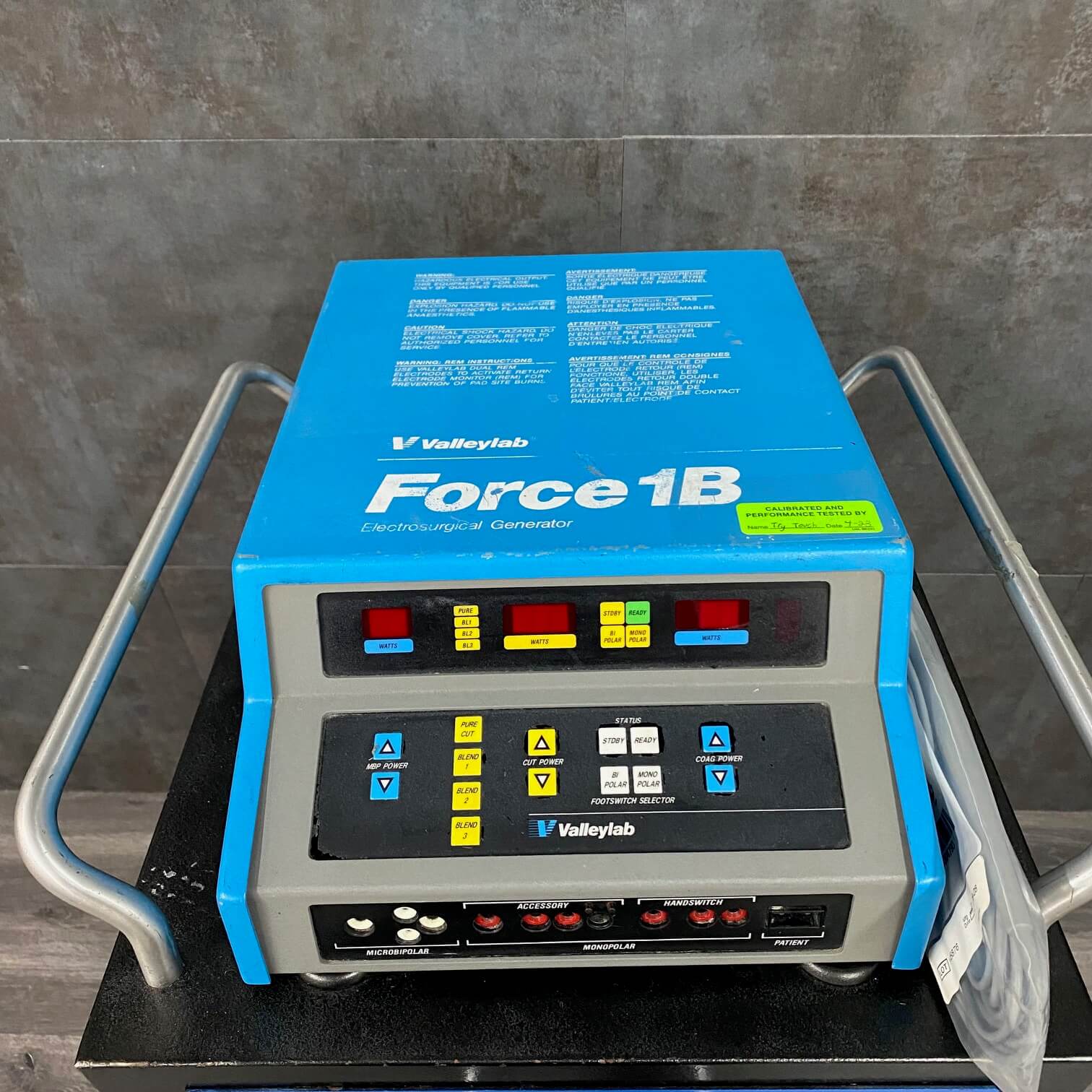

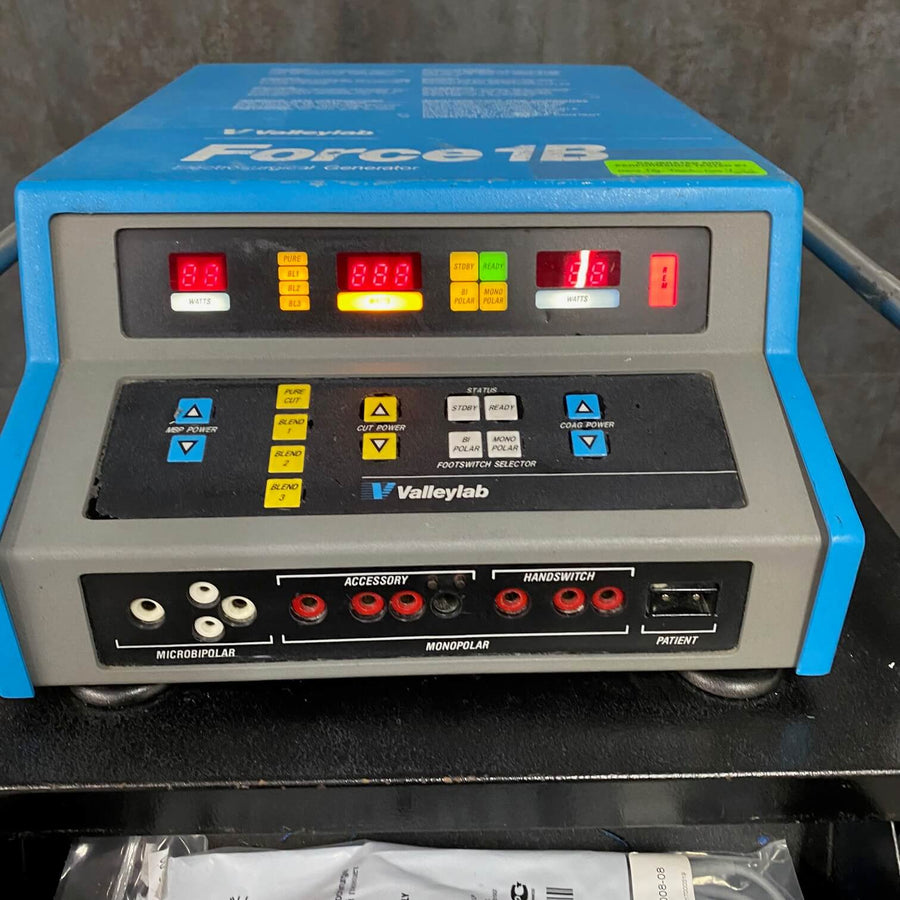

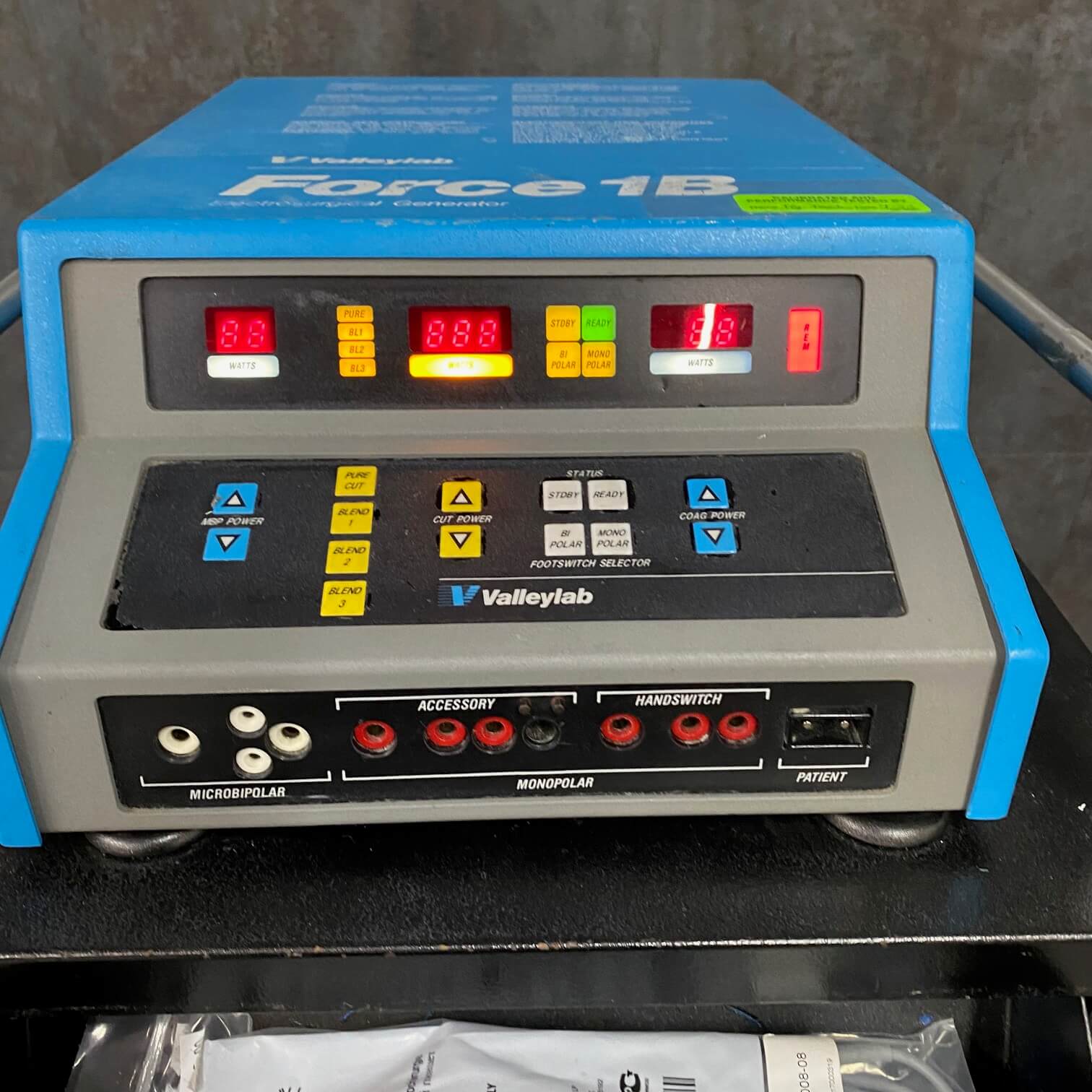

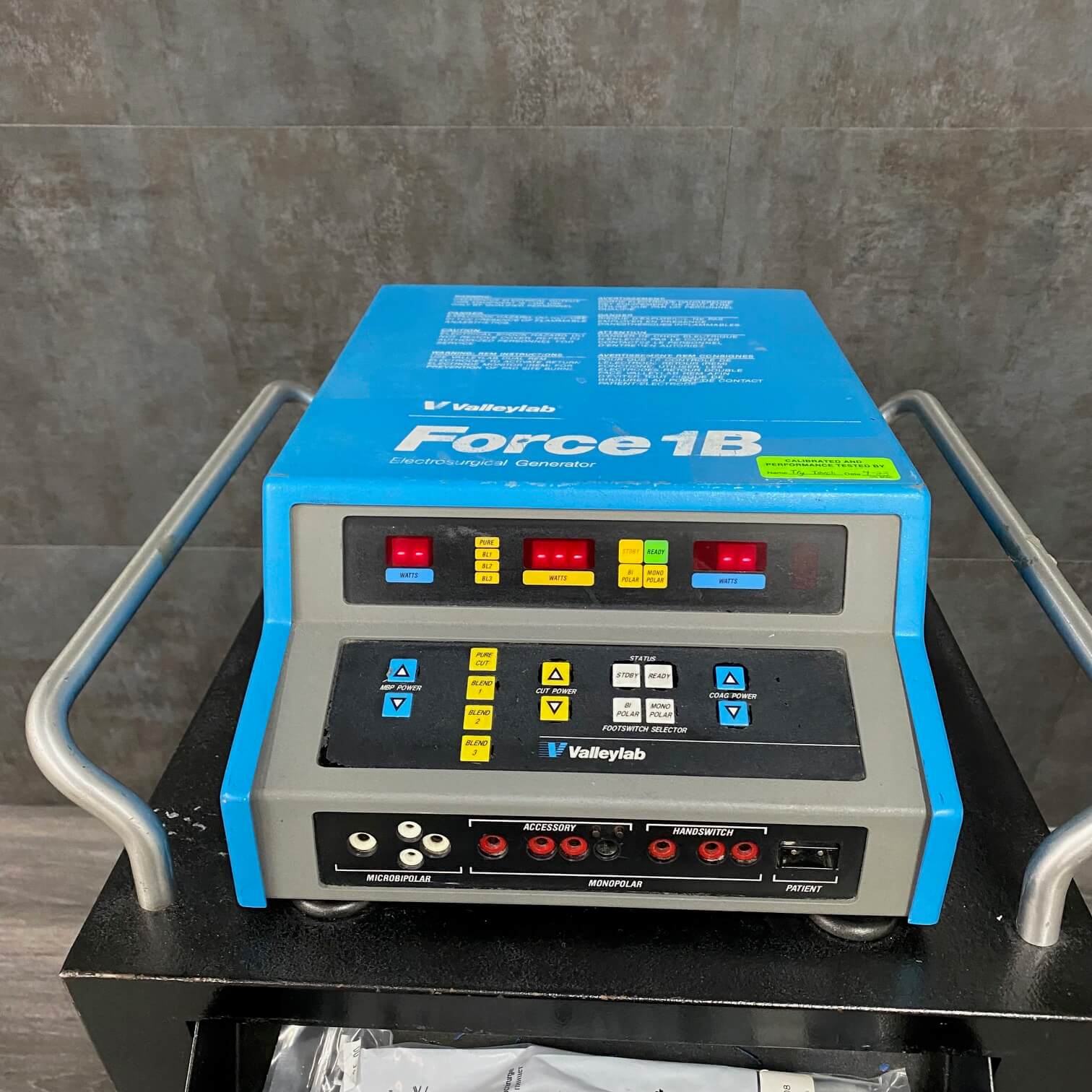

Valleylab Force 1B Electro Surgical Generator

Valleylab Force 1B is a high power ESU with high-performance capabilities in a multipurpose generator. It provides full flexibility through varying degrees of homeostasis.

• Monopolar and Bipolar Outputs
• Audible and Visual Arms, including REM(TM) Fault Indicator
• REM(TM) (Return Electrode Monitoring) (Standard)
• 300 Watts Output - Cut, 120 Watts - Coagulation, 70 watts - Biopolar

Specialty / Medical Practice: General Practice, ENT,

Specifications:

• Product Usage: Cut and coag during procedures
• Brand: Valleylab
• Patient Capacity
• Warranty: 90 days parts and labor only
• Dimensions:  11" X 17" x 8"
• Voltage: 120V

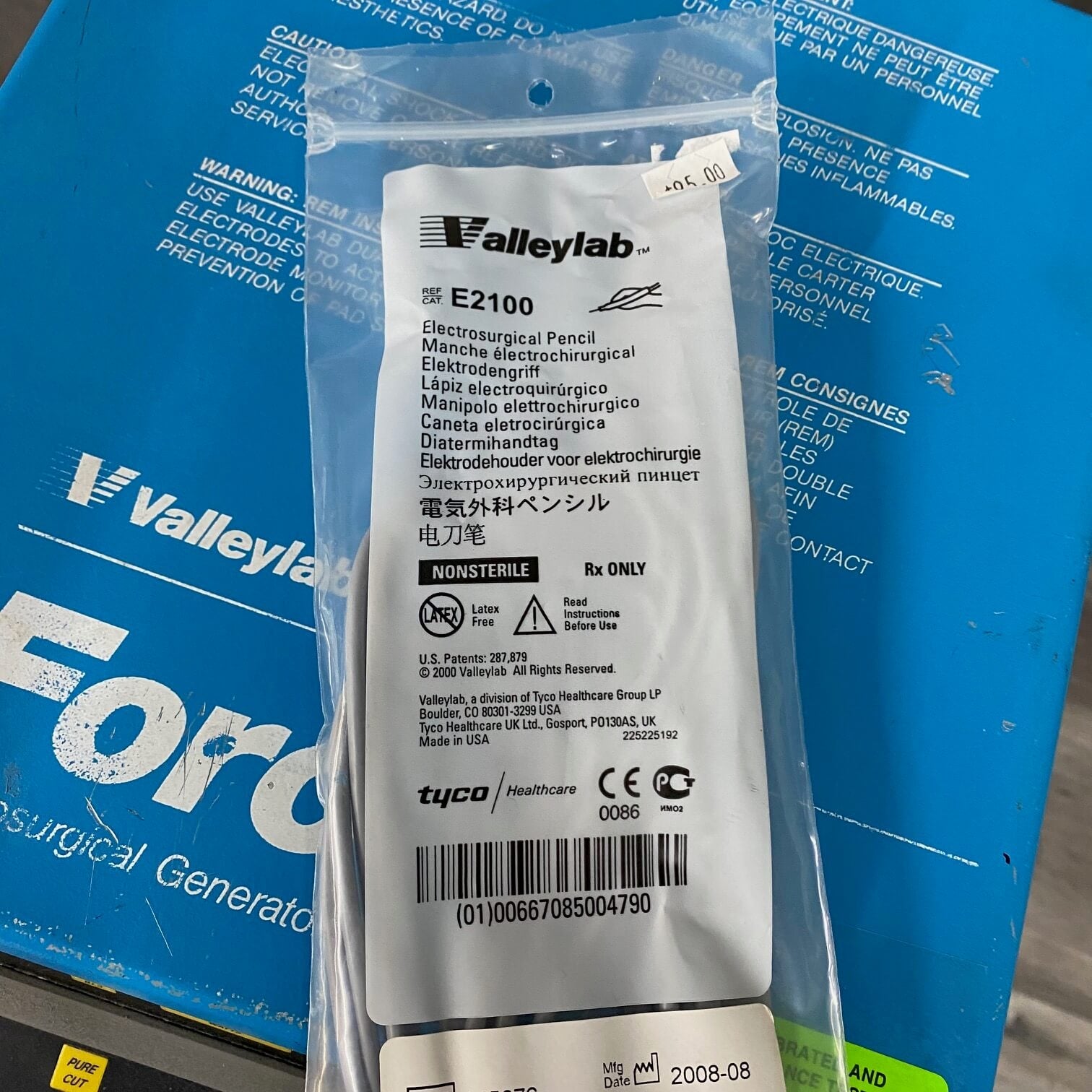

• Includes: Power Cord, Reusable Electrosurgical Pencil
• Days to be ready: 1-2 business days

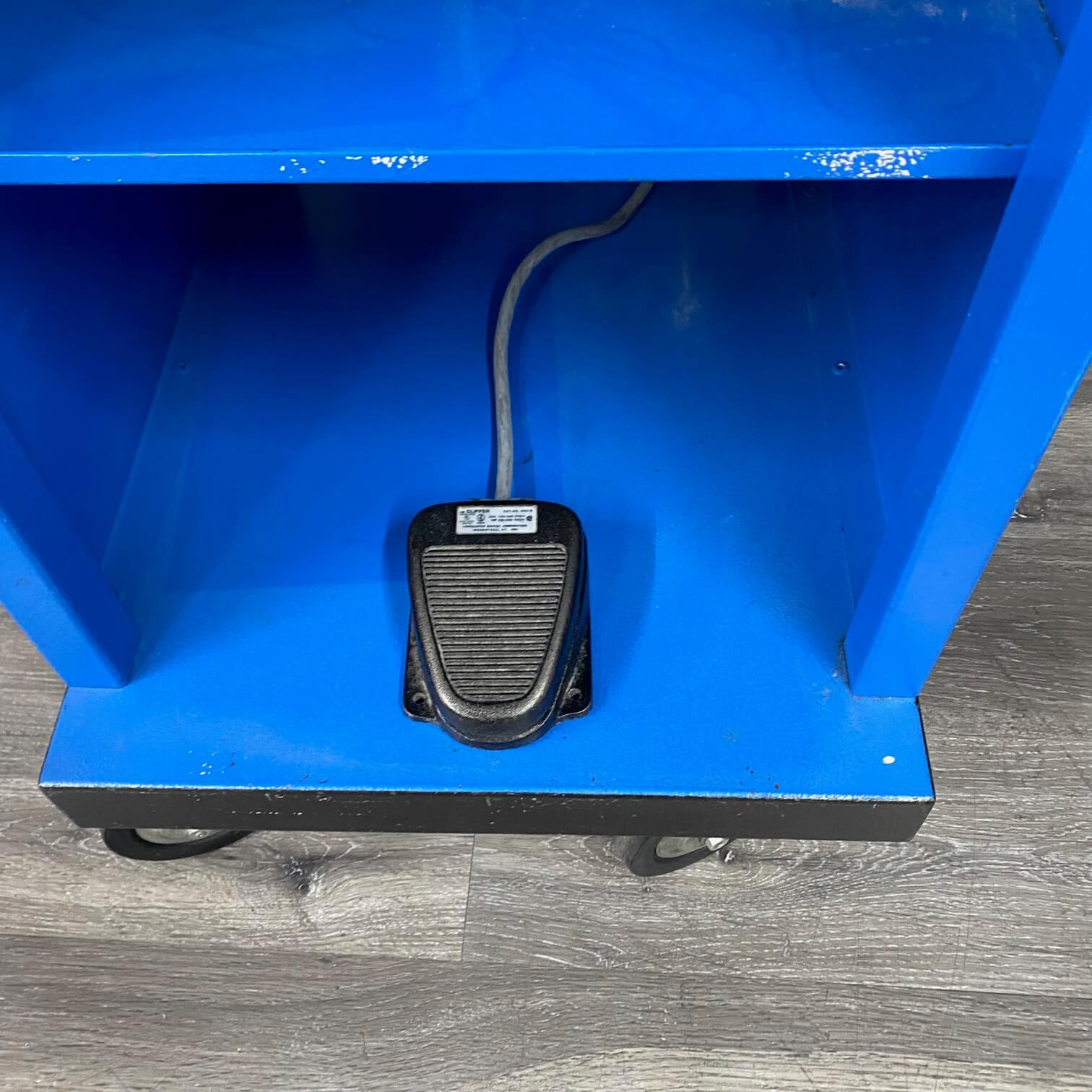

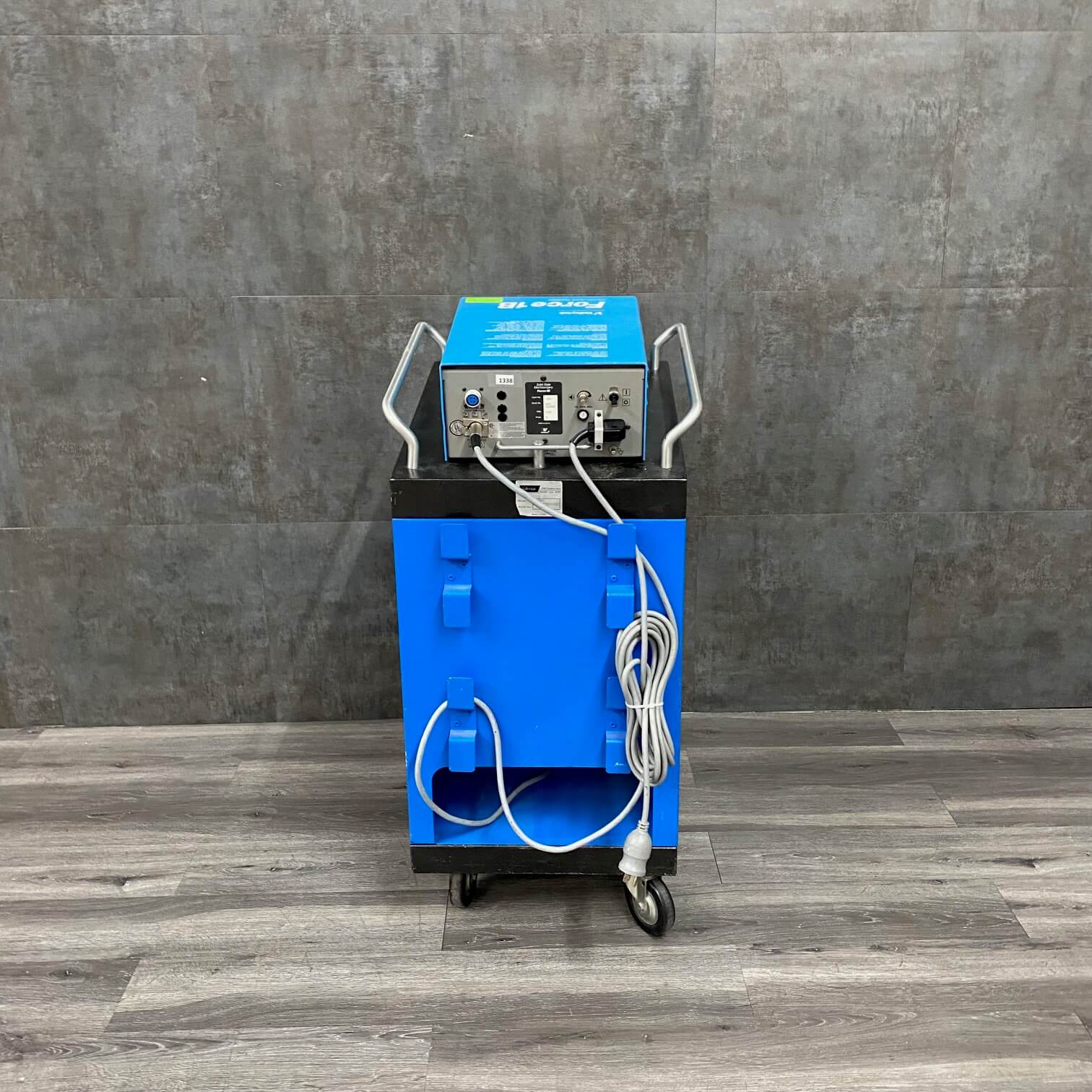

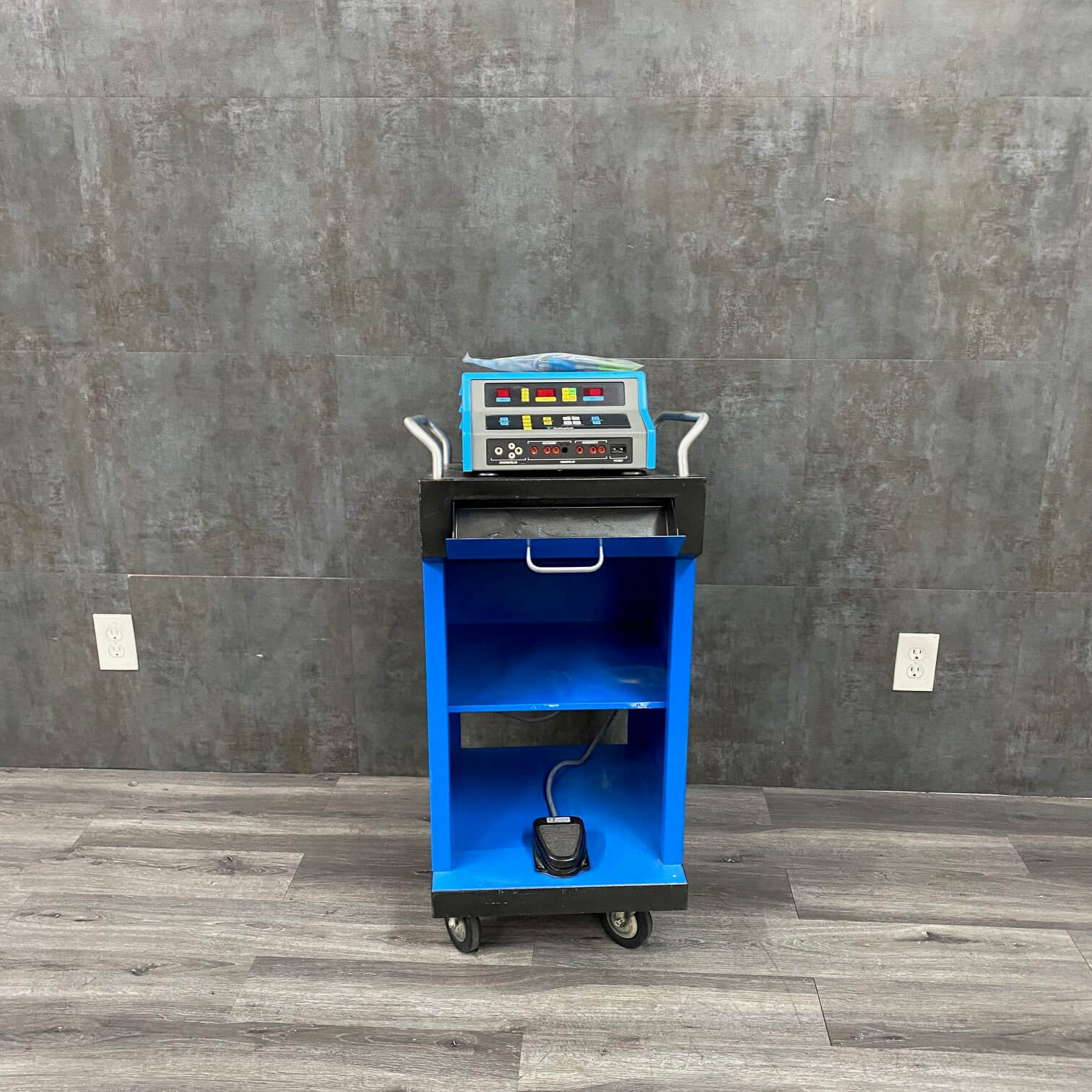

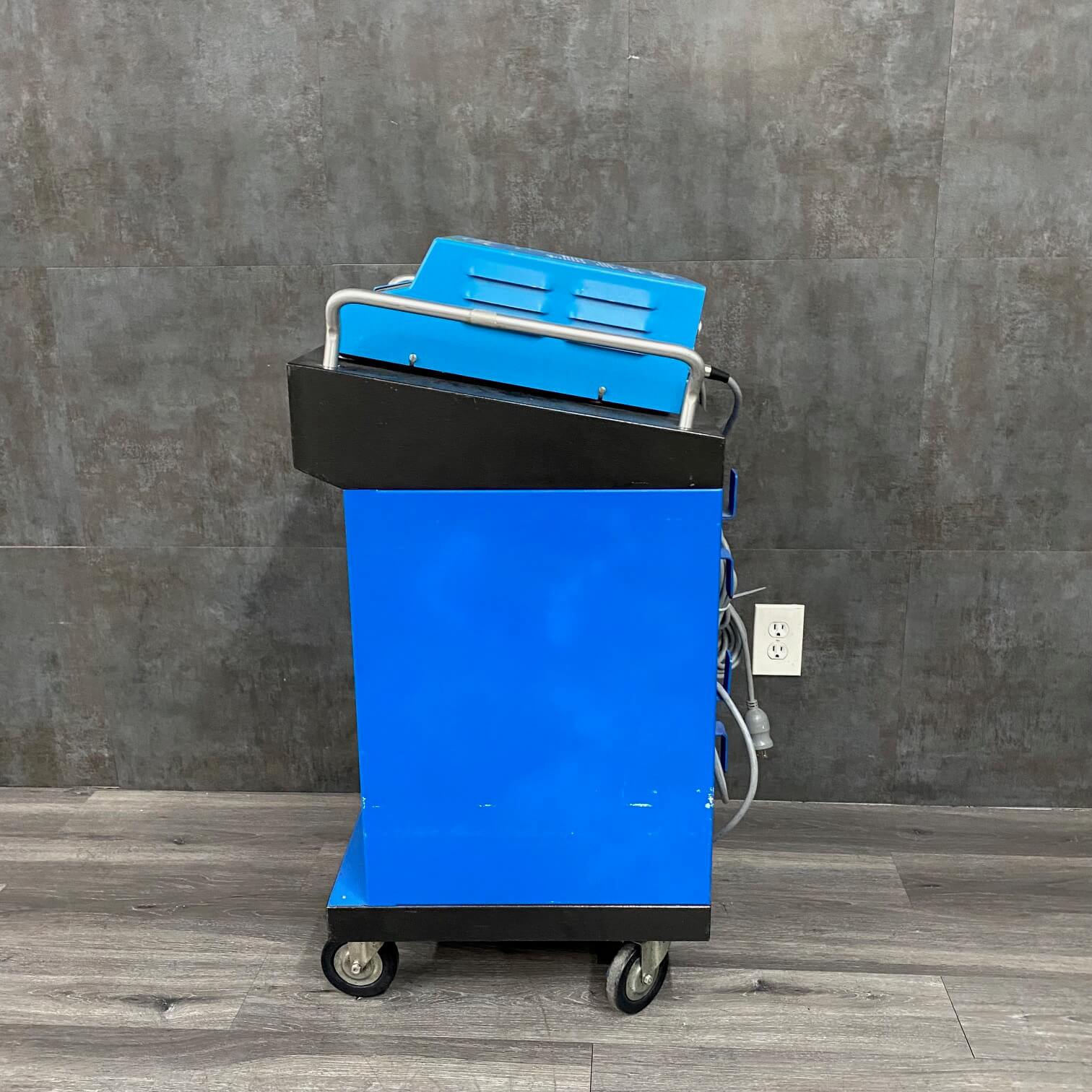

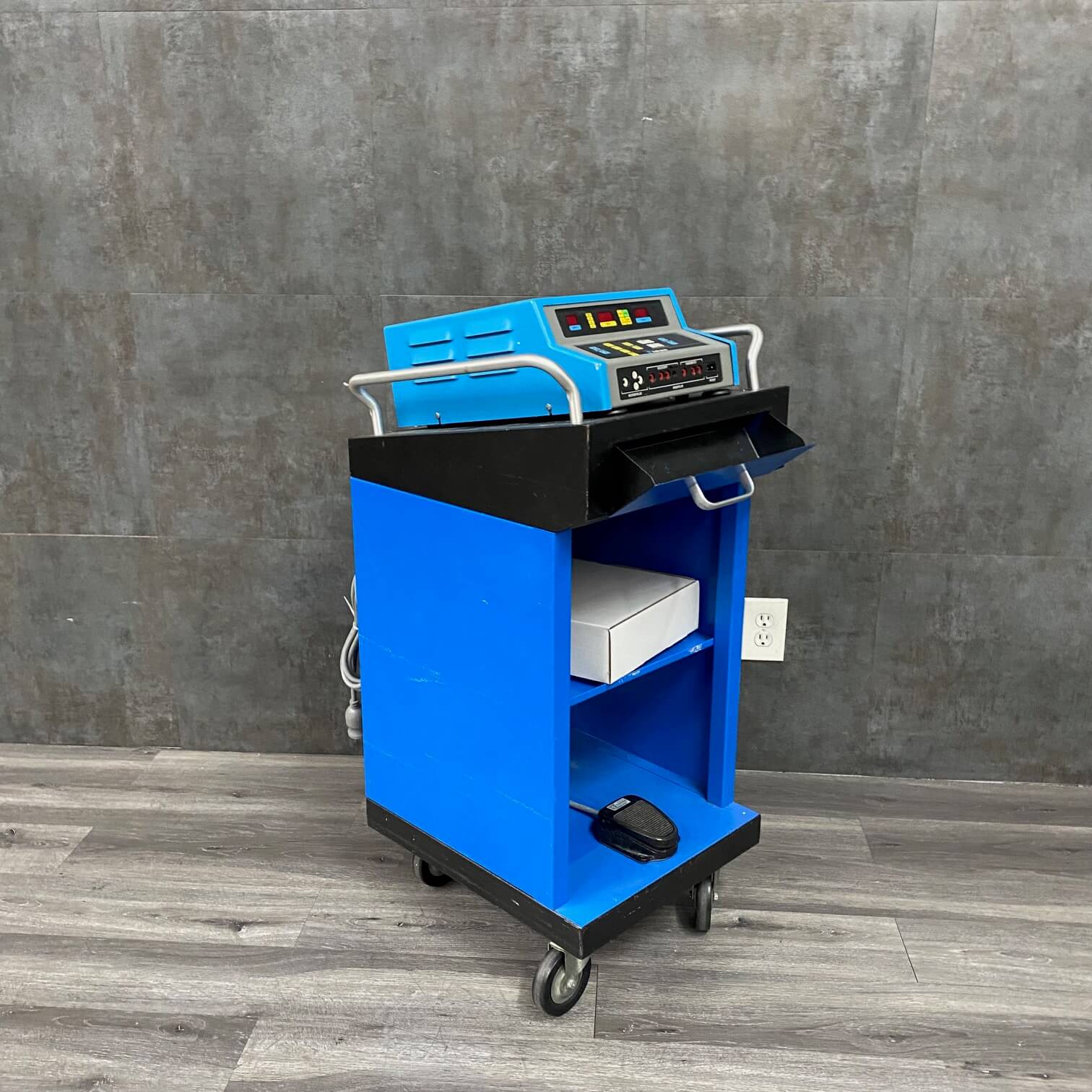

Foot Switch & Cart Sold Separately

Additional Information

Output Characteristics

• Cut: 2400 Max (open circuit) P-P Voltage, 300 Rated Load ohms, 200 Nominal Power at rated load watts, 1.8 @ 100 W Crest Factor at rated load typical
• Blend 1: 2800 Max (open circuit) P-P Voltage, 300 Rated Load ohms, 175 Nominal Power at rated load watts, 2.7 @ 100 W Crest Factor at rated load typical
• Blend 2: 3200 Max (open circuit) P-P Voltage, 300 Rated Load ohms, 150 Nominal Power at rated load watts, 3.3 @ 100 W Crest Factor at rated load typical

Output Waveform

• Cut: 500 kHz Sinusoid
• Blend 1: 500 kHz bursts, 50% Duty Cycle, 31 kHz Recurrence
• Blend 2: 500 kHz bursts, 37.5% Duty Cycle, 31 kHz Recurrence
• Blend 3: 500 kHz bursts, 25% Duty Cycle, 31 kHz Recurrence
• Coag: 500 kHz bursts, 31 kHz Recurrence
• Bipolar: 500 kHz bursts, Unmodulated Recurrence
